System Parameter |
Model | Partaker C7 Fanless Mini PC |
Processor | Onboard Intel Celeron J4125(Quad core quad threading,4MB cache,2.0GHz,Max turbo 2.7GHz) |
CPU Architecture | Gemini Lake Refresh |
Chipset | Integrated Intel HD Graphics 600 |
Memory | Support 1*DDR4 2400MHz SODIMM RAM Slot,MAX 8GB |
BIOS | AMI UEFI BIOS |
Display Port | 1*HDMI,2*DP(Support synchronous and asynchronous three display,Max Resolution support 4096x2160 @ 60Hz) |
Storage | Support 1*M.2 2280 M-key Slot(Support SATA) |
Expansion | Support 1* Half height MINI PCIE slot(WIFI/BT Optional)Support 1* Full height MINI PCIE slot(Suooport MSATA/4G,1* Nano-SIM slot on the plate) |
Support 1*M.2 2242 B-key Slot(Support4G),Embedded SIM slot |
Support 1*M.2 2230 E-key Slot(Support WIFI,BT) |
Expansion function: TPM Pin (support TPM 1.2 / 2.0 security module),1*COM |
Front I/O | 1*Power Switch,4*USB3.0,2*USB2.0,1*COM |

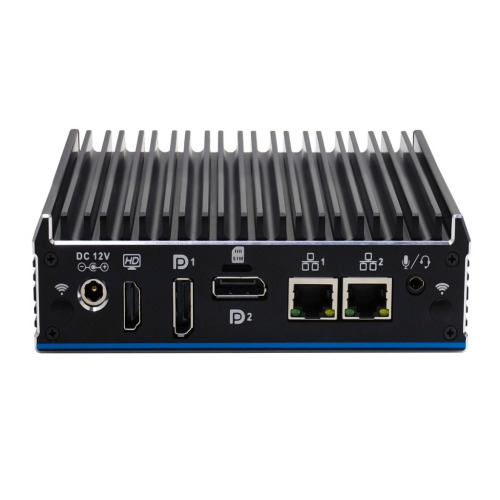

Rear I/O | 1*DC,1*HDMI,2*DP,2*Intel 1000M LAN,1*SIM Card Slot,1*Audio (support audio and mic input) |
Network | 2*10/100/1000M RTL8111H Ethernet Lan |
Input Voltage | Support DC 12V Input; |
Certificates | CE, CCC, FCC Class A, ROHS |
Other Function | Auto power on when there is electricity,Timing boot,Wake on LAN,PXE boot,Watchdog(0~255 level) |
Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education, etc. |
Structure Parameter |
Color | Black[Any color can be customized] |
Material | High-quality all aluminum,surface anodic oxidation |
Dimension | 144 * 126.5 * 42 mm |
Weight | 0.8 kg |
Environmental Parameter |
Work Temp | 0℃ ~ +50℃(Commercial HDD),-20℃ ~ +60℃(Industrial SSD),Surface air flow |
Work Humidity | 0% ~ 95% non-condensing |
